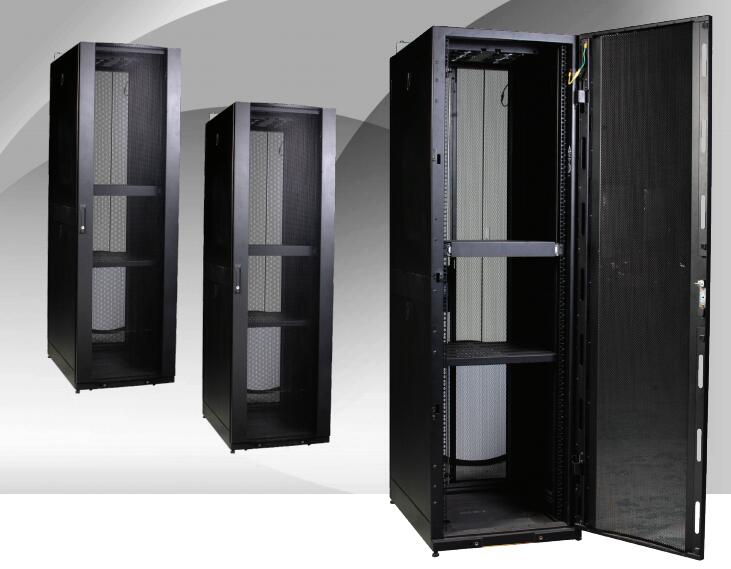

WL豪华控制柜/机箱机柜

更新:2022-4-11 16:18:31      点击:
  • 品牌   扩杰
  • 型号
  • 描述

    ...

产品介绍


WL 产品特点   WL Features of product
● 外观设计高贵典雅,工艺精湛,尺寸精密

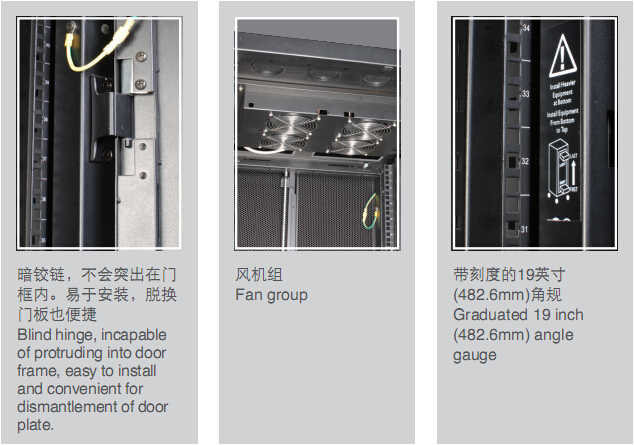

● 可左右互换的前门并采用高密度弧形网孔门,后门采用高密度双开网孔门
● 高级承重脚轮,单个可承重800KG
● 顶底部有可选择的进线孔
● 内部空间可任意伸缩
● 容易拆装,方便进出
● 可选配多种配件
● Appearance design is noble and elegant, workmanship is exquisite and dimension is precision.
● Right-to-left interchangeable front door is high-density arc-shaped mesh door and back door is high-density dual mesh door.
● 800KGHigh-ranking bearing casters, and bearing capacity of per caster is 800KG
● Cable entry holes are optional on the top and at the bottom
● Internal space is adjustable.
● Easy to dismantle and convenient to get in and out
● Suitable for selection of a variety of accessories


序号

订货号(RAL 7035)

宽度(mm)

高度(mm)

深度(mm)

1

WL6125

600

1600

600

2

WL6132

600

1600

800

3

WL6137

600

1800

600

4

WL6142

600

1800

800

5

WL6147

600

2000

600

6

WL7125

600

2000

800

7

WL7132

600

1800

600

8

WL7137

600

1800

800

9

WL7142

600

2000

600

10

WL7147

600

2000

800
