AE控制箱
更新：2019-12-2 20:11:35 点击：
- 品牌 扩杰
- 型号 AE
- 描述
可以根据用户实际使用情况定制尺寸...
产品介绍

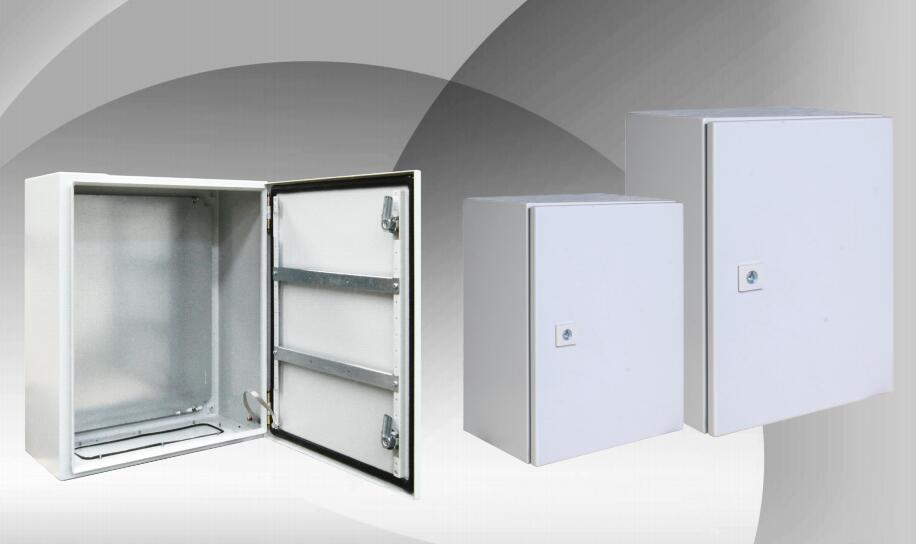

AE壁挂箱
产品特点 Features of products
● PU发泡密封条确保箱体达到IP56的防护等级
● 各种类型及尺寸的凸台确保进出线方便
● 镀锌安装板也可在箱体外做布线用
● 箱口多层保护槽不但起加固作用而且能 防止门板打开时脏物和水进入箱内
● 带双齿锁芯的专业锁系统开和关都极为便捷
● PU foaming sealing strip ensures a protection grade of IP56 to box body
● Bosses of various types and sizes allow easy installation of inlet/outlet lines
● Galvanized mounting plate can also be used for wiring outside the box
● Multiple protection grooves are designed at the box opening can not only reinforce the structure but also prevent the entry of dirt or water when the door is opened
● Professional lock system with double-teeth cylinder allows easy locking/unlocking
|
序号 |
订货号(RAL7035) |
订货号(RAL7032) |
宽度(mm) |
高度(mm) |
深度(mm) |
|
1 |
AE203012500 |
AE203012600 |
200 |
300 |
120 |
|
2 |
AE203021500 |
AE203021600 |
200 |
300 |
210 |
|
3 |
AE304021500 |
AE304021600 |
300 |
400 |
210 |
|
4 |
AE383021500 |
AE383021600 |
380 |
300 |
210 |
|
5 |
AE383821500 |
AE383821600 |
380 |
380 |
210 |
|
6 |
AE405021500 |
AE405021600 |
400 |
500 |
210 |
|
7 |
AE386021500 |
AE386021600 |
380 |
600 |
210 |
|
8 |
AE505021500 |
AE505021600 |
500 |
500 |
210 |
|
9 |
AE606021500 |
AE606021600 |
600 |
600 |
210 |
|
10 |
AE607621500 |
AE607621600 |
600 |
760 |
210 |
|
11 |
AE607635500 |
AE607635600 |
600 |
760 |
350 |

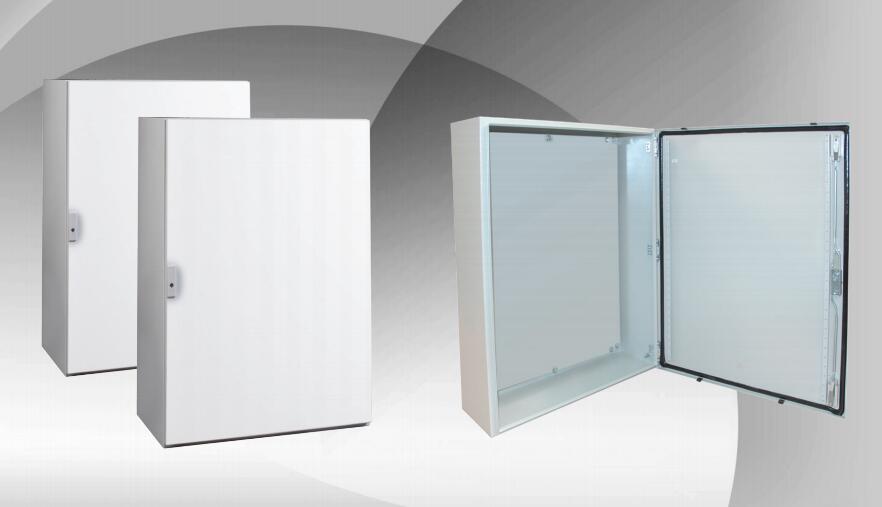

AE立式控制箱
产品特点 Features of products
● PU发泡密封条确保箱体达到IP56的防护等级
● 各种类型及尺寸的凸台确保进出线方便
● 镀锌安装板也可在箱体外做布线用
● 箱口多层保护槽不但起加固作用而且能防止门板打开时脏物和水进入箱内
● 带双齿锁芯的岔道锁系统开和关不但极为便捷，而且确保了其通用性
● 两侧带折边的安装板和安装支架最大限度的确保了安装强度
● PU foaming sealing strip ensures a protection grade of IP56 to box body
● Bosses of various types and sizes allow easy installation of inlet/outlet lines
● Galvanized mounting plate can also be used for wiring outside the box
● Multiple protection grooves are designed at the box opening can not only reinforce the structure but also prevent the entry of dirt or water when the door is opened
● Professional turnoff lock system with double-teeth cylinder allows easy locking/unlocking and universality
● Mounting plate and supporting rack with flanges on both sides ensures the max. mounting strength
|
序号 |
订货号(RAL7035) |
订货号(RAL7032) |
宽度(mm) |
高度(mm) |
深度(mm) |
|
1 |
AE608025500 |
AE608025600 |
600 |
800 |
250 |
|
2 |
AE609030500 |
AE609030600 |
600 |
900 |
300 |
|
3 |
AE801030500 |
AE801030600 |
800 |
1000 |
300 |
|
4 |
AE601230500 |
AE601230600 |
600 |
1200 |
300 |
